imagefilledellipse

Draw a filled ellipse (PHP 4 >= 4.0.6, PHP 5)
bool imagefilledellipse ( resource image, int cx, int cy, int width, int height, int color )

Draws an ellipse centered at the specified coordinate on the given image.

Parameters

image: An image resource, returned by one of the image creation functions, such as imagecreatetruecolor().
cx: x-coordinate of the center
cy: y-coordinate of the center
width: The arc width
height: The arc height
color: The fill color. A color identifier created with imagecolorallocate()

Return Values

Returns TRUE on success or FALSE on failure.

Examples

Example 1009. imagefilledellipse() example

copy to clipboard

<?php



// create a blank image

$image = imagecreatetruecolor(400, 300);



// fill the background color

$bg = imagecolorallocate($image, 0, 0, 0);



// choose a color for the ellipse

$col_ellipse = imagecolorallocate($image, 255, 255, 255);



// draw the white ellipse

imagefilledellipse($image, 200, 150, 300, 200, $col_ellipse);



// output the picture

header("Content-type: image/png");

imagepng($image);



?>

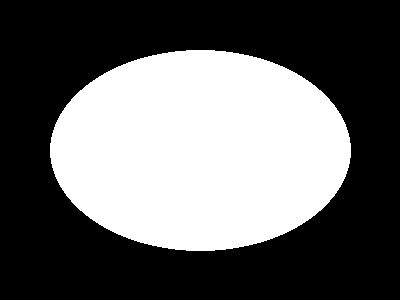

The above example will output something similar to:

Notes

Note:

This function requires GD 2.0.1 or later (2.0.28 or later is recommended).
