Technologies Used to Implement the Design

ASP.NET 2.0 is the overriding technology that makes the site work. This runs on the web server and takes advantage of the functionality provided by the .NET Framework. However, ASP.NET does not run on the user's computer; instead, it dynamically generates the elements a browser uses to render a page. These elements that are sent down to the browser consist of HTML, images, and Cascading Style Sheets (CSS), which provide colors, sizes, and alignments for various items in the HTML. ASP.NET also generates some JavaScript procedural code that is also sent down to the browser to handle data validation and to tell the browser how to interact with the web server.

HTML is defined in several ways. You can use the visual form designer in Visual Studio to drop controls onto the form, and this automatically creates HTML code. Or, you can hand-edit or author your own HTML code in the .aspx files to give it features that aren't easily specified in the form designer. Lastly, HTML can be dynamically generated by your C# code, or by classes in the .NET Framework.

ASP.NET 1.x used a "code behind" model: HTML (and some presentation-oriented C# code) was put in an .aspx file, and implementation C# code would go into a separate file that would be inherited by the .aspx file. We call the .aspx file "the page" because that's where the visual web page is defined. This provided some separation between presentation code and the related implementation code. One problem with this model is that the auto-generated code created by the form designer would be placed in the same files that the developer uses for his code.

ASP.NET 2.0 modifies the code-behind model and uses a new 2.0 feature of the .NET Framework called partial classes. The idea is simple: Allow one class to span more than one file. Visual Studio will auto-generate at runtime the code for declaring the controls and registering events, and then it will combine that with the user-written code; the result is a single class that is inherited by the .aspx page. The @Page directive declared in the .aspx page uses the CodeFile attribute to reference the .cs code-behind file with the user-written code.

Another change in .ASP.NET 2.0 is the elimination of project files. Projects are now determined based on folders on your hard disk. Also, code for all pages of a project was generated into one .dll by ASP.NET 1.x, but now ASP.NET 2.0 generates code separately for each page. Why does this matter? You don't have to re-deploy large amounts of code when changes are made to one page only. You only need to re-deploy the code for the individual page(s) that changed, which gives you more granular control over change management.

Using CSS to Define Styles in Stylesheet Files

It is not possible to give an exhaustive explanation of CSS in this book, but I'll cover some of the general concepts. You should consult other sources for complete details about CSS. The purpose of CSS is to specify how visual HTML tags are to be rendered by specifying various stylistic elements such as font size, color, alignment, and so on. These styles can be included as attributes of HTML tags, or they can be stored separately and referred to by name or ID.

Sometimes HTML files have the styles hard-coded into the HTML tags themselves, such as the following example:

<div style="align: justify; color: red; background-color: yellow; font-size:
12px;">some text</div>

This is bad because it is difficult to modify these stylistic elements without going into all the HTML files and hunting for the CSS attributes. Instead, you should always put the style definitions in a separate stylesheet file with an extension of .css; or if you insist on including styles inside an HTML file, you should at least define them in a <style> section at the top of the HTML file.

When you group CSS styles together, you can create small classes, which syntactically resemble classes or functions in C#. You can assign them a class name, or ID, to allow them to be referenced in the class= attribute of HTML tags.

If you use stylesheet classes and you want to change the font size of all HTML tags that use that class, you only need to find that class's declaration and change that single occurrence in order to change many visual HTML elements of that given type. If the stylesheet is defined in a separate file you will benefit even more from this approach, because you will change a single file and n pages will change their appearance accordingly.

The primary benefits of using CSS are to minimize the administrative effort required to maintain styles and to enforce a common look and feel among many pages. Beyond this, however, CSS also ensures safety for your HTML code and overall site. Let's assume that the client wants to change some styles of a site that's already in production. If you've hard-coded styles into the HTML elements of the page, then you'd have to look in many files to locate the styles to change, and you might not find them all, or you might change something else by mistake — this could break something! However, if you've used style classes stored separately in CSS files, then it's easier to locate the classes that need to be changed, and your HTML code will be untouched and safe.

Furthermore, CSS files can make a site more efficient. The browser will download it once and then cache it. The pages will just link to that cached instance of the .css file and not contain all the styles again, so they will be much smaller, and therefore faster to download. In some cases this can dramatically speed up the loading of web pages in a user's browser.

Here is an example of how you can redefine the style of the DIV object shown above by storing it in a separate file named styles.css:

.mystyle
{
   align: justify;
   color: red;
   background-color: yellow;
   font-size: 12px;
}

Then, in the . aspx or .htm page, you will link the CSS file to the HTML as follows:

<head>
   <link href="/styles.css" text="text/css" rel="stylesheet" />
   <!-- other metatags... -->
</head>

Finally, you write the HTML division tag and specify which CSS class you want it to use:

<div class="mystyle">some text</div>

Note that when the style was declared, I used the dot (.) prefix for the class name. You have to do this for all of your custom style classes.

If you want to define a style to be applied to all HTML objects of a certain kind (for example, to all <p> paragraphs, or even the page's <body> tag) that don't have another explicit class associated with them, you can write the following specification in the stylesheet file:

body
{
   margin: 0px;
   font-family: Verdana;
   font-size: 12px;
}

p
{
   align: justify;
   text-size: 10px;
}

This sets the default style of all body tags and all <p> (paragraph) tags in one place. However, you could specify a different style for some paragraphs by stating an explicit class name in those tags.

Yet another way to associate a style class to a HTML object is by ID. You define the class name with a # prefix, as follows:

#header
{
   padding: 0px;
   margin: 0px;
   width: 100%;

   height: 184px;
   background-image: url(images/HeaderSlice.gif);
}

Then you could use the id attribute of the HTML tag to link the CSS to the HTML. For example, this is how you could define an HTML division tag and specify that you want it to use the #header style:

<div id="header">some text</div>

You typically use this approach for single objects, such as the header, the footer, the container for the left, right, center column, and so on.

Finally, you can mix the various approaches. Suppose that you want to give a certain style to all links into a container with the sectiontitle class, and some other styles to links into a container with the sectionbody class. You could do it this way:

In the .css file

.sectiontitle a
{
   color: yellow;
}

.sectionbody a
{
   color: red;
}

In the .aspx/.htm file

<div class="sectiontitle">
some text
<a href="http://www.wrox.com">Wrox</a>
some text
</div>

<div class="sectionbody">
some other text
<a href="http://www.wiley.com">Wiley</a>
some other text
</div>

Avoid Using HTML Tables to Control Layout

Sometimes developers will use HTML tables to control the positioning of other items on a web page. This was considered the standard practice before CSS was developed, but many developers still use this methodology today. Although this is a very common practice, the W3C officially discourages it (www.w3c.org/tr/wai-webcontent), saying "Tables should be used to mark up truly tabular information ("data tables"). Content developers should avoid using them to lay out pages ("layout tables"). Tables for any use also present special problems to users of screen readers." In other words, HTML tables should be used for displaying tabular data on the page, not to build the entire layout of the page. For that, you should use container controls (such as DIVs) and their style attribute, possibly through the use of a separate <style> section or a separate file. This is ideal for a number of reasons:

• If you use DIVs and a separate stylesheet file to define appearance and position, you won't need to repeat this definition again and again, for each and every page of your site. This leads to a site that is both faster to develop and easier to maintain.

• The site will load much faster for end users! Remember that the stylesheet file will be downloaded by the client only once, and then loaded from the cache for subsequent requests of pages until it changes on the server. If you define the layout inside the HTML file using tables, the client instead will download the table's layout for every page, and thus it will download more bytes, with the result that downloading the whole page will require a longer time. Typically, a CSS-driven layout can trim the downloaded bytes by up to 50%, and the advantage of this approach becomes immediately evident. Furthermore, this savings has a greater impact on a heavily loaded web server — sending fewer bytes to each user can be multiplied by the number of simultaneous users to determine the total savings on the web server side of the communications.

• Screen readers, software that can read the text and other content of the page for blind and visually impaired users, have a much more difficult job when tables are used for layout on the page. Therefore, by using a table-free layout, you can increase the accessibility of the site. This is a very important requisite for certain categories of sites, such as those for public administration and government agencies. Few companies are willing to write off entire groups of users over simple matters like this.

• CSS styles and DIVs provide greater flexibility than tables. You can, for example, have different stylesheet files that define different appearances and positions for the various objects on the page. By switching the linked stylesheet, you can completely change the appearance of the page, without changing anything in the content pages themselves. With dynamic ASP.NET pages, you can even change the stylesheet at runtime, and thus easily implement a mechanism that enables end users to choose the styles they prefer. And it's not just a matter of colors and fonts — you can also specify positions for objects in CSS files, and thus have a file that places the menu box on the upper-left corner of the page, and another one that puts it on the bottom-right corner. Because we want to allow users to pick their favorite styles from a list of available themes, this is a particularly important point.

• CSS enables you to target different classes of devices in some cases without requiring new HTML markup, such as mobile devices like PDAs or smartphones. Due to their constrained screen size, it is necessary to adapt the output for them, so that the content fits the small screen well and is easily readable. You can do this with a specific stylesheet that changes the size and position of some containers (placing them one under the other, rather than in vertical columns), or hide them completely. For example, you might hide the container for the banners, polls, and the header with a big logo. Try to do this if you use tables — it will be much more difficult. You'll have to think about a custom skinning mechanism, and you'll need to write separate pages that define the different layouts available. This is much more work than just writing a new CSS file.

Enter the Master Page Model

ASP.NET 2.0 introduces a new "master page" feature that enables you to define common areas that every page will share, such as headers, footers, menus, and so on. A master page enables you to put the common layout code in a single file and have it visually inherited in all the content pages. A master page contains the overall layout for your site. Content pages can inherit the appearance of a master page, and place their own content where the master page has defined a ContentPlaceHolder control. Although this has the effect of providing a form of visual inheritance, it's not really implemented with inheritance in an OOP sense — instead, the underlying implementation of master pages is based on a template model.

An example is worth a thousand words, so let's see how this concept turns into practice. A master page has a .master extension and is similar to a user control under the covers. Following is some code for a master page that contains some text, a header, a footer, and defines a ContentPlaceHolder control between the two:

<%@ Master Language="C#" AutoEventWireup="true" CodeFile="MasterPage.master.cs"
Inherits="MasterPage" %>

<html>
<head id="Head1" runat="server">
   <title>TheBeerHouse</title>
</head>

<body>
<form id="Main" runat="server">
   <div id="header">The Beer House</div>
   <asp:ContentPlaceHolder ID="MainContent" runat="server" />
   <div id="footer">Copyright 2005 Marco Bellinaso</div>
</form>
</body>
</html>

As you see, it is extremely similar to a standard page, except that it has a @Master directive at the top of the page instead of a @Page directive, and it declares one or more ContentPlaceHolder controls where the .aspx pages will add their own content. The master page and the content page will merge together at runtime — therefore, because the master page defines the <html>, <head>, <body> and <form> tags, you can easily guess that the content pages must not define them again. Content pages will only define the content for the master's ContentPlaceHolder controls, and nothing else. The following extract shows an example of a content page:

<%@ Page Language="C#" MasterPageFile="~/MasterPage.master" AutoEventWireup="true"
CodeFile="MyPage.aspx.cs" Inherits="MyPage" Title="The Beer House - My Page" %>

<asp:Content ID="MainContent" ContentPlaceHolderID="MainContent" Runat="Server">
   My page content goes here...
</asp:Content>

The first key point is that the @Page directive sets the MasterPageFile attribute to the virtual path of the master page to use. The content is placed into Content controls whose ContentPlaceHolderID must match the ID of one of the ContentPlaceHolder controls of the master page. In a content page, you can't place anything but Content controls, and other ASP controls that actually define the visual features must be grouped under the outermost Content controls. Another point to note is that the @Page directive has a new attribute, Title, that allows you to override the value specified in the master page's <title> metatag. If you fail to specify a Title attribute for a given content page, then the title specified on the master page will be used instead.

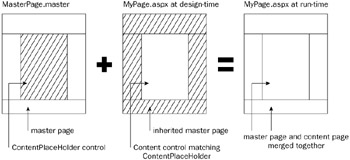

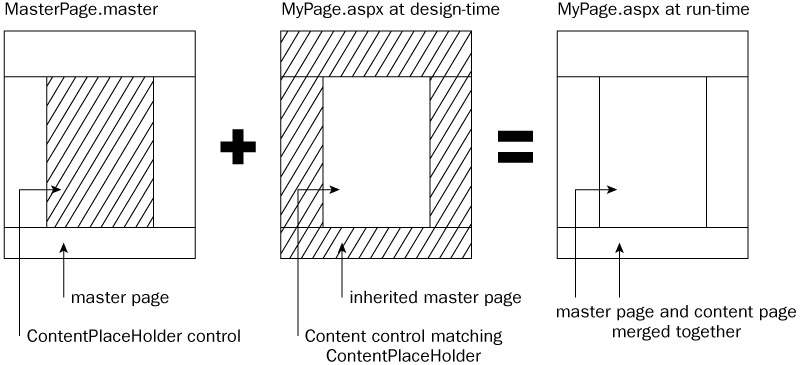

Figure 2-2 provides a graphical representation of the master page feature.

Figure 2-2

When you edit a content page in Visual Studio, it properly renders both the master page and the content page in the form designer, but the master page content appears to be "grayed out." This is done on purpose as a reminder to you that you can't modify the content provided by the master page when you're editing a content page.

I'd like to point out that your master page also has a code-beside file that could be used to write some C# properties and functions that could be accessed in the .aspx or code-beside files of content pages.

When you define the ContentPlaceHolder in a master page, you can also specify the default content for it, which will be used in the event that a particular content page doesn't have a Content control for that ContentPlaceHolder. Here is a snippet that shows how to provide some default content:

<asp:ContentPlaceHolder ID="MainContent" runat="server">
   The default content goes here...
</asp:ContentPlaceHolder>

Default content is helpful to handle situations in which you want to add a new section to a number of content pages, but you can't change them all at once. You can set up a new ContentPlaceHolder in the master page, give it some default content, and then take your time in adding the new information to the content pages — the content pages that haven't been modified yet will simply show the default content provided by the master.

The MasterPageFile attribute at the page level may be useful if you want to use different master pages for different sets of content pages. If, however, all pages of the site use the same master page, it's easier to set it once for all pages from the web.config file, by means of the <pages> element, as shown here:

<pages masterPageFile="~/Template.master" />

If you still specify the MasterPageFile attribute at the page level however, that attribute will override the value in web.config for that single page.

<%@ Master Language="C#" MasterPageFile="~/MasterPage.master"
AutoEventWireup="true" CodeFile="MasterPage2.master.cs" Inherits="MasterPage2" %>

<asp:Content ID="Content1" ContentPlaceHolderID="MainContent" Runat="Server">
   Some other content...
   <hr style="width: 100%;" />
   <asp:ContentPlaceHolder ID="MainContent" runat="server" />
</asp:Content>

public bool LoginBoxIsVisible
{
   get { return LoginBox.Visible; }
   set { LoginBox.Visible = value; }
}

<%@ MasterType VirtualPath="~/MasterPage.master" %>

protected void Test_OnClick(object sender, EventArgs e)
{
   this.Master.LoginBoxIsVisible = false;
}

protected void Page_PreInit(object sender, EventArgs e)
{
   this.MasterPageFile = "~/OtherMasterPage.master";
}

Defining a Site Map File

The menu options are specified in an XML site map file. The main site map for the whole site is named web.sitemap, with a hierarchical structure of <siteMapPath> nodes that have the title and url attributes. The following extract provides an example:

<?xml version="1.0" encoding="utf-8" ?>
<siteMap xmlns="http://schemas.microsoft.com/AspNet/SiteMap-File-1.0" >
   <siteMapNode title="Home" url="~/Default.aspx" />
   <siteMapNode title="About" url="~/About.aspx" />
   <siteMapNode title="Contact" url="~/Contact.aspx" />
</siteMap>

In our case we'll have first-level nodes, such as Home, Contacts and About, and also second and maybe third-level nodes such as Store/Shopping Cart. Here is a more complex example showing some second-level entries; it also refers to another child sitemap file that provides the menu entries for the Store:

<?xml version="1.0" encoding="utf-8" ?>
<siteMap xmlns="http://schemas.microsoft.com/AspNet/SiteMap-File-1.0" >
  <siteMapNode title="Books" url="~/Books/Books.aspx>
     <siteMapNode title="Authors" url="~/Books/Authors.aspx" />
     <siteMapNode title="Publishers" url="~/Books/Publishers.aspx" />
  </siteMapNode>

   <siteMapNode title="DVDs" url="~/DVDs/DVDs.aspx>
     <siteMapNode title="Movies" url="~/DVDs/Movies.aspx" />
     <siteMapNode title="Songs" url="~/DVDs/Songs.aspx" />
   </siteMapNode>
   <siteMapNode siteMapFile="~/StoreMenu.sitemap" />
</siteMap>

The child siteMap (StoreMenu.sitemap) has the same format as the web.sitemap, and it has an outer siteMap node.

Binding the SiteMap to Menu Controls

Once you've defined the sitemap file, you can use it as a data source for new ASP.NET 2.0 controls such as Menu and TreeView. ASP.NET 2.0 also introduces new nonvisual controls called DataSource controls that can link to a database, XML file, or component class. These controls will be used by graphical controls to retrieve the data to be bound and displayed onscreen. In practice, they serve as a bridge between the actual data store and the visual control. The SiteMapDataSource is one of these DataSource controls, specifically designed for the site's web.sitemap file, and defined like this:

<asp:SiteMapDataSource ID="SiteMapDataSource1" runat="server" />

Note that you don't define the path for the web.sitemap file, as there can be only one site map for the whole site and it is named ~/web.sitemap. When creating child site maps for limited subfolders within your site, the binding is handled transparently because they are linked from the web.sitemap.

The menu control creates popular DHTML fly-out menus, with vertical or horizontal orientation. In ASP.NET 1.1 there were no decent standard Menu controls and it seemed like every web component developer company offered their own component to create these menus. However, with ASP.NET 2.0 we have a standard menu control built in for free and it has the capacity to integrate with the various data source controls. To create a Menu control bound to the SiteMapDataSource defined above, you simply need the following line:

<asp:Menu ID="mnuHeader" runat="server" DataSourceID="SiteMapDataSource1" />

Of course, the Menu control exposes many properties that allow you to specify its orientation (the Orientation property), the CSS class to use (CssClass) or the appearance of its various parts, the number of inner map levels that will be displayed in the fly-outs (StaticDisplayLevels), and much more. However, complete coverage of these properties is beyond the scope of this book; you should refer to the official MSDN documentation for details.

Displaying the sitemap with a tree view representation instead of the fly-out menus involves a replacement of the Menu declaration with the new TreeView control, as shown below:

<asp:TreeView runat="server" ID="tvwMenu" DataSourceID="SiteMapDataSource1" />

Home > Store > Shopping cart

<asp:SiteMapPath ID="SiteMapPath1" runat="server" />
